Truck Hub Billet Aluminium Forgings AlCu4Mg1 A2024 EN AW 2024

Products

Air Disc Brake Core Components

Truck Hub Billet Aluminium Forgings AlCu4Mg1 A2024 EN AW 2024

MOQ:	1PCS
Price:	Negotiations
Standard Packaging:	wooden pallet
Delivery Period:	20~30days
Payment Method:	T/T, L/C
Supply Capacity:	10000MT per month

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Certification

ISO9001-2008,SGS,ROHS.

Model Number

Application:

Truck Hub, Ordnance, Railway Vehicles, Machine Structure

Name:

Forging 2024 Aluminum

Standard:

JIS, DIN, BS, ASTM, SAE.

Type:

Casting Forging

Technics:

Forge, CNC

Alloy:

2024 AlCu4Mg1 A2024 EN AW-2024

Temper:

Highlight:

Truck Hub Aluminium Forgings

Truck Hub Billet Aluminium

Aluminium Forgings AlCu4Mg1

Product Description

Truck Hub Billet Aluminium Forgings AlCu4Mg1 A2024 EN AW 2024

Product Overview

AlCu4Mg1 A2024 EN AW-2024 Super Duralumin alloy billet forging 2024 aluminum for truck hub applications.

Key Specifications

Alloy: 2024 AlCu4Mg1 A2024 EN AW-2024
Maximum Diameter: 1320mm
Maximum Length: 7500mm
Maximum Weight: Up to 12.5 tons
Standard Sizes: Φ166, Φ220, Φ380, Φ396, Φ448, Φ462, Φ566, Φ582, Φ915, Φ1060, Φ1220, Φ1320

Material Characteristics

High-strength aluminum alloy with excellent heat treatment response. Features medium plasticity in quenched and tempered condition, good spot welding capability, and excellent machinability after quenching and cold work hardening.

Temper Options

T6 or T852: High tensile strength and yield point, good ductility and machinability, excellent forging performance
Temper F: Suitable for large cross-section forgings, provides high strength with minimal distortion

Mechanical Properties

Property	Value
Tensile Strength (σb)	≥ 390 MPa
Yield Strength (σ0.2)	≥ 245 MPa

Quality Features

World's largest billet specification at φ1320mm
High purity with low hydrogen, low dross, and low alkali content
Excellent homogeneity with minimal composition segregation
Fine grain size with minimal difference between core and surface
Hydrogen content ≤ 0.08ML/100gAl
Porosity at class one
Oxidation film at class one
Ultrasonic flaw detection at level A

Chemical Composition

Element	Content (%)
Cu	3.8-4.9
Mg	1.2-1.8
Mn	0.3-0.9
Fe	0.5
Si	0.5
Zn	0.25
Ti	0.15
Cr	0.1
Other	<0.2
Al	Balance

Available Sizes

Diameter (mm)	Maximum Length (mm)
Φ166	7500
Φ220	7500
Φ380	7500
Φ396	7500
Φ448	7500
Φ462	7500
Φ566	7500
Φ582	7500
Φ915	4500
Φ1060	4000
Φ1220	4000
Φ1320	3500

Note: Billet peeling service available

Applications

Airplane components, truck hubs, ordnance equipment, railway vehicles, and machine structures.

Packaging

Wooden pallet packaging for secure transportation and storage.

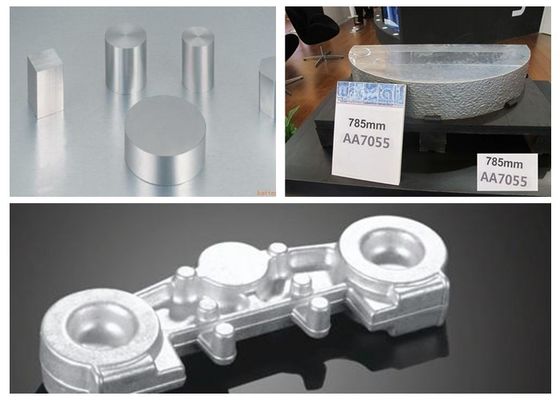

Product Application Example
