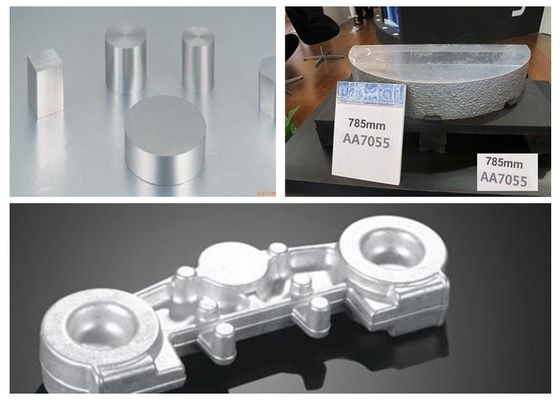

Forging Aluminium Alloy 5083 Marine Grade LF4 AlMg4.5Mn0.7
  • name

Forging Aluminium Alloy 5083 Marine Grade LF4 AlMg4.5Mn0.7

MOQ: 1PCS
Price: Negotiations
Standard Packaging: wooden pallet
Delivery Period: 20~30days
Payment Method: T/T, L/C
Supply Capacity: 1000 per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
JIMA
Certification
ISO9001-2008,SGS,ROHS.
Model Number
5083
Application:
Ships And Warships Parts, Sea Water Desalination Structure
Name:
5083 Aluminium Forging Products
Standard:
JIS, DIN, BS, ASTM, SAE.
Type:
Casting Forging
Technics:
Forge, CNC
Alloy:
5083，LF4，AlMg4.5Mn0.7，A5083，EN AW-5083
Highlight:

Marine Grade Aluminium Alloy 5083

,

Forging Aluminium Alloy 5083

,

LF4 Aluminum Forging Alloys

Product Description
Forging Aluminium Alloy 5083 Marine Grade LF4 AlMg4.5Mn0.7
Super Duralumin 5083 aluminium forging products LF4 AlMg4.5Mn0.7 A5083 EN AW-5083
Applications
Military ballistic rocket parts, marine high strength welded structures, flange plate for liquefied natural gas, petrochemical machinery, ships and warships parts, sea water desalination structure.
Product Specifications
Alloy: 5083 (LF4)
5083 aluminum alloy is a high magnesium alloy with excellent strength in non-heat treated condition, superior corrosion resistance, and good machinability.
Maximum Diameter: 1320mm
Maximum Length: 7500mm
Standard Sizes: Φ166, Φ220, Φ380, Φ396, Φ448, Φ462, Φ566, Φ582, Φ915, Φ1060, Φ1220, Φ1320
Mechanical Properties
Tensile Strength (MPa) ≥ 270
Yield Strength (0.2 MPa) ≥ 110
Elongation (%) 10-20
Key Features
  • Large specification capability - φ1320mm is the largest billet worldwide
  • Maximum billet weight up to 12.5 tons
  • High purity with low hydrogen, low dross, and low alkali content
  • High homogeneity in composition and organization
  • Minimal segregation and small grain size difference
  • Fine grain size structure
  • Hydrogen content ≤ 0.08ML/100gAl
  • Porosity at class one
  • Oxidation film at class one
  • Ultrasonic flaw detection at level A
  • Excellent corrosion resistance and weldability
  • Beautiful anodized surface finish
  • Good machinability and moderate strength
Chemical Composition Standard
Element Content (%)
Cu 0.1
Mg 4.0-4.9
Mn 0.04-0.1
Fe 0.4
Si 0.4
Zn 0.25
Ti 0.15
Cr 0.05-0.25
Other <0.15
Al Balance
5083-H12 Mechanical Properties
Property Value
Tensile Strength (kg/mm²) 31
Yield Point (kg/mm²) 19.7
Elongation (%) 8
Brinell Hardness 80
Shear Strength (kg/mm²) 12.3
Fatigue Strength (kg/mm²) 15.5
Available Product Sizes
Diameter (mm) Maximum Length (mm)
Φ166 7500
Φ220 7500
Φ380 7500
Φ396 7500
Φ448 7500
Φ462 7500
Φ566 7500
Φ582 7500
1. Billet peeling is available.
2. Cut-to-length product is available upon customer request.
Industry Applications
Military ballistic rocket parts, marine high strength welded structures, flange plate for liquefied natural gas, petrochemical machinery, ships and warships parts, sea water desalination structure, automotive and aircraft components, welded structures, subway and light rail systems, pressure vessels requiring stringent fire prevention (liquid tankers, refrigerated trucks, refrigerated containers), cooling devices, television towers, drilling equipment, transportation equipment, and missile component armor.
