Automobile Forging Aluminium Alloy 6082 T6 Temper 1320mm Max Diameter
  • name

Automobile Forging Aluminium Alloy 6082 T6 Temper 1320mm Max Diameter

MOQ: 1PCS
Price: Negotiations
Standard Packaging: wooden pallet
Delivery Period: 20~30days
Payment Method: T/T, L/C
Supply Capacity: 1000 per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
JIMA
Certification
ISO9001-2008,SGS,ROHS.
Model Number
5082
Application:
Aerospace, Large-scale Automobile Vehicle, Railway Vehicle Material & Rotor Parts
Name:
6005A T6 Aluminum Aluminium Alloy Forging Parts For Railway Transportation Transportation Machinery Parts
Standard:
JIS, DIN, BS, ASTM, SAE.
Type:
Casting Forging
Technics:
Forge, CNC
Alloy:
6082，AlSiMgMn，en Aw-6082
Temper:
T6
Highlight:

Automobile Aluminium Alloy 6082 T6

,

Forging Aluminium Alloy 6082 T6

,

1320mm Aluminium Alloy Billet

Product Description
Automobile Forging Aluminium Alloy 6082 T6 Temper 1320mm Max Diameter

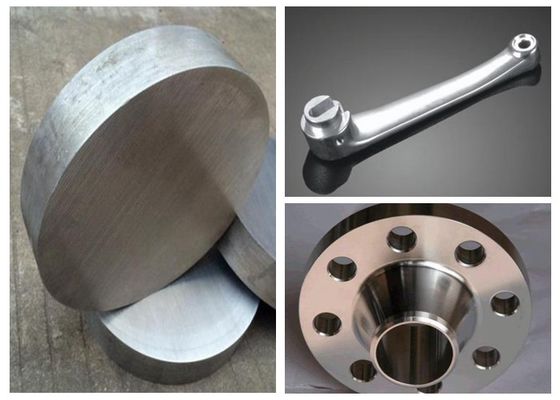

Large Scale Automobile Forging Aluminium Alloy 6082 T6 Temper with maximum diameter of 1320mm and maximum length of 7500mm.
Quick Specifications
  • Alloy: 6082
  • Maximum diameter: 1320mm
  • Maximum length: 7500mm
Application Areas
Aerospace, large-scale automobile vehicles, railway vehicle materials & rotor parts
Product Features
  • Large specification: φ1320mm billet is the largest in the world
  • Maximum billet weight up to 12.5 tons
  • High purity: low hydrogen, low dross, low alkali content
  • High homogeneity: uniform composition and organization with minimal segregation
  • Small grain size difference between core and surface
  • Fine grain size
  • Hydrogen content ≤0.08ML/100gAl
  • Porosity at class one
  • Oxidation film at class one
  • Ultrasonic flaw detection at level A
6082 Chemical Composition Standard
Cu Mg Mn Fe Si Zn Ti Cr Other Al
0.1 0.6-1.2 0.4-1.0 0.5 0.7-1.3 0.20 0.10 0.25 <0.15 Balance
6082 Aluminum Alloy Introduction
6082 aluminum alloy belongs to the 6XXX series (Al-Mg-Si), offering heat-treatable enhanced aluminum alloy plate with moderate strength and excellent welding performance, along with superior corrosion resistance. Primarily used in transportation and construction engineering industries for applications such as bridges, cranes, roof structures, conveyors, and carriers.
With the rapid development of the shipbuilding industry, reducing hull weight and improving speed has become crucial. 6082 aluminum alloy plates provide an ideal material replacement for steel components in high-speed applications due to their moderate strength, excellent corrosion resistance, and lightweight properties.
6082 Aluminum Mechanical Properties
  • Tensile strength (σb): ≥205 MPa
  • Yield strength (σ0.2): ≥110 MPa
  • Elongation (δ): ≥14%
Packaging
Wooden pallet
6082 Aluminum Billet Forging Product Sizes
Diameter (mm) Max. Length (mm)
Φ1667500
Φ2207500
Φ3807500
Φ3967500
Φ4487500
Φ4627500
Φ5667500
Φ5827500
Note: Billet peeling is available. Cut-to-length products are available upon customer request.
Aluminium Forging Alloy & Application Guide
Alloy Forging Product Application
6070Aerospace, large-scale automobile vehicle, railway vehicle material & rotor parts
6082Aerospace, large-scale automobile vehicle, railway vehicle material & rotor parts
7150Aerospace, large-scale automobile vehicle, railway vehicle material & rotor parts
