Skeleton Forging 7079 Aluminium Alloy Billet High Purity 7000 Series
  • name

Skeleton Forging 7079 Aluminium Alloy Billet High Purity 7000 Series

MOQ: 1PCS
Price: Negotiations
Standard Packaging: wooden pallet
Delivery Period: 20~30days
Payment Method: T/T, L/C
Supply Capacity: 1000 per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
JIMA
Certification
ISO9001-2008,SGS,ROHS.
Model Number
7079
Application:
Skeleton Large Forgings
Name:
Extra-super Duralumin 7079 Aluminium Alloy Billet For Forging For Skeleton Large Forgings
Standard:
JIS, DIN, BS, ASTM, SAE.
Type:
Casting Forging
Technics:
Forge, CNC
Alloy:
7079
Temper:
T6
Highlight:

7079 Aluminium Alloy Billet

,

Forging Aluminium Alloy Billet

,

Skeleton Forging 7079 Aluminium

Product Description

7079 extra-super duralumin aluminium alloy Billet for Forging of Skeleton large forgings,Aviation and aerospace fields.​
Application:

Skeleton large forgings,Aviation and aerospace fields.

Quickly details:

Improve the plastic high to the mechanical properties of forgings.
Alloy: 7079.
Temper: T6,T652.
Max diameter: 1320mm.
Max length : 7500mm.
(AA) 7079,UNS A97079,GB 7A10(LC10)；DIN AlZnMgCu0.5/3.4345, JIS (A7N11).

Features:

Large specification :the produced billetφ1320mm is the largest billet in the world.
The max : weight of the billet up to 12.5 ton.
High purity : low hydrogen, low dross, low alkali content inside the ingot .
high-homogeneity : composition & organization, Small degree of segregation.small grain
size difference between core and surface.

Fine grain size.
Availability of product with the hydrogen content ≤0.08ML/100gAl.
Availability of product with porosity at class one .
Availability of product with oxidation film at the class one.
Availability of product with ultrasonic flaw detection at level A.

7079 Chemical Composition Standard.

Cu Mg Mn Fe Si Zn Ti Cr Other Al
0.4-0.8 2.9-3.7 0.1-0.3 0.4 0.3 3.8-4.8 0.10 0.1-0.25 <0.15 Balance


Aluminum Alloy 7075 properties.

Temper


Tensile strength
(kg/mm2)

 yield point, elongation(kg/mm2) Elongation(%)

brinell hardness


shear strength(kg/mm2)


 fatigue strength(kg/mm2)
T6 54.8 47.8 14 145 31.6 16.2
T652 54.8 47.8 14 145 31.6 16.2

Package: wooden pallet.

FAQ:

Q1.  What’s the maximum diameter ?
Is 1320mm.

Q2.  Is it the Fumigation carton pallet?
Yes ,it is .

Q3: How do you quote price ,per ton ,per meter or kg?
A: We provide more than two pricing modes.

Q4: How many quantity for 40'GP load?
A: Aprrox.25 tons.

Q5. How many tons you can supply each month?
We can offer more than 40000 tons each month.

Q6. Are the package suitable For export ?
Yes , it is suitable for export.

Aluminium forging alloy & forging product size.

Alloy Products size

Diameter
(mm)

Max. length
(mm)

2xxx
4xxx
5xxx
6xxx
7xxx

 Φ166 7500
Φ220 7500
Φ380 7500
Φ396 7500
Φ448 7500
Φ462 7500
Φ566 7500
Φ582 7500

2xxx
7xxx

 Φ915 4500
Φ1060 4000
Φ1220 4000
Φ1320 3500

Remark:1. Billet peeling is available.
2. The cut-to-length product is available upon to customer’s request.

Aluminium forging alloy & forging product application.

Alloy forging product application
2024 Airplane, truck hub, ordnance, railway vehicles, machine structure
2025 Aeroplane propeller
2218 Airplane engine cylinder head and piston
2219 The rocket liquid fuel tank, work structure for long time high temperature ,welding structure, vehicle material
2618 Airplane cylinder head and piston hub, jet motor accessories, rubber mold, General heat-resistant parts,ect
5083 Military ballistic rocket parts, marine high strength welded structures, flange plate for liquefied natural gas, petrochemical machinery, ships and warships parts, sea water desalination structure
5056 flange plate for liquefied natural gas, petrochemical machinery, ships and warships parts, sea water desalination structure
5456 military rocket trajectory ballistic fist-size pile piece, marine high strength welded structures
6061 Truck component, automobile hub, flange, chemical industry & water heater
6070 aerospace, large-scale automobile vehicle, railway vehicle material & rotor parts
6082
6005A supercharger fan, high speed train carriage material & transportation machinery parts, ect
6151 the airplane engine box, auto parts, machine part,ect
7049 aerospace vehicle structure
7079 Skeleton large forgings
7075 Airplane, ship, auto parts, structural member
7175
7475
7050 high stress components, especially key components and aerospace materials and important structural materials
7150

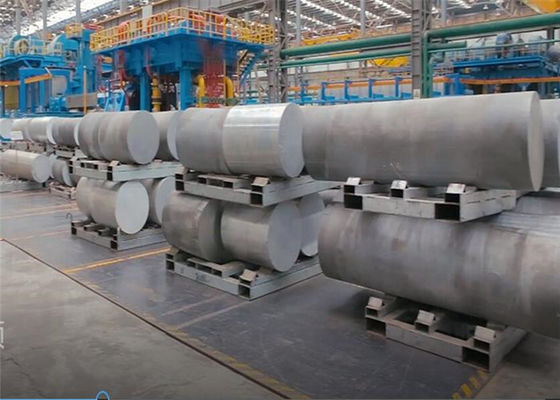

Photos of 7079 extra-super duralumin aluminium alloy Billet for forging
Skeleton Forging 7079 Aluminium Alloy Billet High Purity 7000 Series 0
