7050 T6 Aluminum Forged Rings A97050 AlZn6CuMgZr A7050 EN AW-7050 AlZn6CuMgZr
  • name
  • name
  • name

7050 T6 Aluminum Forged Rings A97050 AlZn6CuMgZr A7050 EN AW-7050 AlZn6CuMgZr

MOQ: Negotiations
Price: Negotiations
Standard Packaging: wooden pallet
Delivery Period: 20～30days
Payment Method: L/C, , T/T
Supply Capacity: 10000 tons per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
JIMA Aluminum
Certification
BV,CE,SGS,ISO9001
Model Number
5005 5052 5454 6061 6063 7075
Name:
7050 T6 A97050 AlZn6CuMgZr A7050 EN AW-7050 AlZn6CuMgZr Large-Size Forged Rings
Alloy:
7050 T6 A97050 AlZn6CuMgZr A7050 EN AW-7050
Process:
Free Forging + CNC +Flaw Detection
Sample:
Can Be Supplied
Highlight:

7050 T6 Aluminum Forged Rings

,

A97050 Aluminum Forged Rings

,

AlZn6CuMgZr Aluminum Rolled Rings

Product Description

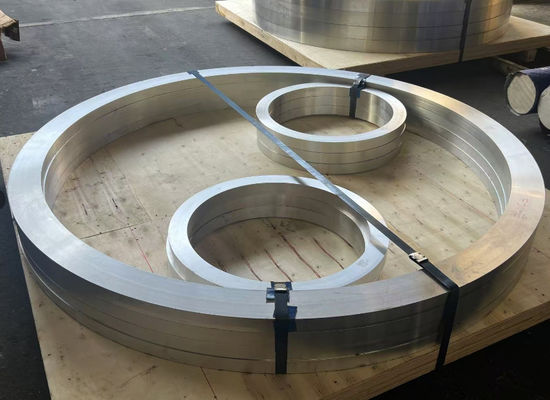

7050 T6 Aluminum Forged Rings
High-performance 7050 T6 aluminum alloy forged rings meeting A97050, AlZn6CuMgZr, A7050, and EN AW-7050 specifications for demanding industrial applications.
Product Specifications
Alloy State: 7050 T6 A97050 AlZn6CuMgZr A7050 EN AW-7050 AlZn6CuMgZr
Process: Free Forging + CNC + Flaw Detection
Sample Size: ∅2257mm × ∅2012mm × 90mm
Size: Customized
MOQ: 1 Piece
Standard: YS/T479-2005
Material Composition
Element Al Zn Mg Cu Cr Mn Si Ti Fe Other Elements
Content (Mass Fraction) 87.1% - 93.0% 5.5% - 6.7% 1.2% - 2.6% 1.9% - 2.6% 0.14% 0.10% 0.06% - 0.12% 0.06% 0.05% - 0.15% ≤ 0.50%
Industry Applications
Aerospace
  • Aircraft fuselage frames
  • Wing girders and ribs
  • Engine fan blades
  • Compressor blades
  • Turbine disks
Transportation
  • Automobile engine crankshafts and connecting rods
  • Suspension components and wheel hubs
  • High-speed train hull structural components and bogies
  • Ship decks, hull structural components, and masts
Forging Process
  1. Billet Preparation: Material selection, cutting and reserving allowance
  2. Heat Treatment: Heating at 460-480°C using appropriate furnace equipment
  3. Forging Operations: Upsetting, punching, hole expanding and ring rolling
  4. Post-Forging Treatment: Air cooling or air blast cooling, T6 heat treatment, machining and surface treatment
Tags:

Forged Rings,

Metal Flange Ring,

Forged Metal Rings
