MOQ:	1PCS
Price:	Negotiations
Standard Packaging:	Standard Export Wooden Pallet
Delivery Period:	15~30days
Payment Method:	T/T, L/C
Supply Capacity:	10000 pcs /per month

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

JIMA

Certification

ISO9001-2008,SGS,ROHS.

Model Number

Application:

Flange/Petrochemical Machinery/ships

Name:

OEM 5056 Forged Aluminum Part For Flange Plate/Petrochemical Machinery/Ships/Cold Forging /Hot Forging

Standard:

JIS, DIN, BS, ASTM, SAE.

Alloy:

5056

Sample:

Can Be Customized

Mold:

Can Be Customized

Process:

Forging

Sueface Treatment:

Anodizing,Plating,Satin,Painting,Powder Coating,anodized Etc

Highlight:

5056 Forged Aluminum Parts

Flange Plate Forged Aluminum Parts

Petrochemical Machinery Aluminium Forging Parts

Product Description

OEM 5056 Forged Aluminum Part for Flange Plate/Petrochemical Machinery/Ships/Cold Forging /Hot Forging

Product Details

Material	Aluminum Alloy 5056
Process	Forging+CNC+Heat Treatment
Surface Treatment	Transparent / Color Anodized;Hard Anodizing;Powder Coating; Sandblasting, Laser Carving, Silk Screening; Nickel-Plated, Chrome, Galvanized, Silver/Gold Plating; Black Oxide Coating; Polishing; etc...
Manufacture Ability	Depends on The Complexity Of Different Products And Quantities
Experience	Aluminum Machining Service for 12 Years
Packaging	Standard Export Wooden Pallets Another Request According to Your Need
MOQ	1pcs
Sample	Can be Customized
Mold	Can be Customized
Lead Time	Mold for 15-20Days Process for 15-20Days
OEM	Can be Customized

Chemical Composition Limits

Weight%

Mn+Cr

Others Each

Others Total

Alloy 5056 USA

Bal

0.3 max

0.4 max

0.10 max

0.05/0.20

0.05 / 0.20

4.50 / 5.6

0.10 max

0.05 each

0.15 max

Alloy 5056A EWAA

Bal

0.4 max

0.5 max

0.10 max

0.10 / 0.6

0.20 max

4.50 / 5.6

0.10 / 0.6

0.20 max

0.05 max

0.15 max

Physical Properties of 5056-O	Metric	English	Comments
Density	2.64 g/cc	0.0954 lb/in³	AA; Typical

Mechanical Properties	Metric	English	Comments
Hardness, Brinell	65	65	AA; Typical; 500 g load; 10 mm ball
Hardness, Knoop	88	88	Converted from Brinell Hardness Value
Hardness, Vickers	75	75	Converted from Brinell Hardness Value
Tensile Strength, Ultimate	290 MPa	42000 psi	AA; Typical
	41.0 MPa @Temperature 371 °C	5950 psi @Temperature 700 °F
	76.0 MPa @Temperature 316 °C	11000 psi @Temperature 601 °F
	110 MPa @Temperature 260 °C	16000 psi @Temperature 500 °F
	152 MPa @Temperature 204 °C	22000 psi @Temperature 399 °F
	214 MPa @Temperature 149 °C	31000 psi @Temperature 300 °F
	290 MPa @Temperature 24.0 °C	42100 psi @Temperature 75.2 °F
Tensile Strength, Yield	152 MPa	22000 psi	AA; Typical
	28.0 MPa @Temperature 371 °C	4060 psi @Temperature 700 °F
	48.0 MPa @Temperature 316 °C	6960 psi @Temperature 601 °F
	69.0 MPa @Temperature 260 °C	10000 psi @Temperature 500 °F
	90.0 MPa @Temperature 204 °C	13100 psi @Temperature 399 °F
	117 MPa @Temperature 149 °C	17000 psi @Temperature 300 °F
	150 MPa @Temperature 24.0 °C	21800 psi @Temperature 75.2 °F
Elongation at Break	35 % @Temperature 24.0 °C	35 % @Temperature 75.2 °F
	55 % @Temperature 149 °C	55 % @Temperature 300 °F
	65 % @Temperature 204 °C	65 % @Temperature 399 °F
	80 % @Temperature 260 °C	80 % @Temperature 500 °F
	100 % @Temperature 316 °C	100 % @Temperature 601 °F
	130 % @Temperature 371 °C	130 % @Temperature 700 °F
	35 % @Diameter 12.7 mm	35 % @Diameter 0.500 in	AA; Typical
Modulus of Elasticity	71.0 GPa	10300 ksi	AA; Typical; Average of tension and compression. Compression modulus is about 2% greater than tensile modulus.
Poissons Ratio	0.33	0.33	Estimated from trends in similar Al alloys.
Fatigue Strength	138 MPa @# of Cycles 5.00e+8	20000 psi @# of Cycles 5.00e+8	completely reversed stress; RR Moore machine/specimen
Shear Modulus	25.9 GPa	3760 ksi
Shear Strength	179 MPa	26000 psi	AA; Typical

Electrical Properties	Metric	English	Comments
Electrical Resistivity	0.00000598 ohm-cm @Temperature 20.0 °C	0.00000598 ohm-cm @Temperature 68.0 °F	AA; Typical

Thermal Properties	Metric	English	Comments
CTE, linear	22.5 µm/m-°C @Temperature -50.0 - 20.0 °C	12.5 µin/in-°F @Temperature -58.0 - 68.0 °F
	24.1 µm/m-°C @Temperature 20.0 - 100 °C	13.4 µin/in-°F @Temperature 68.0 - 212 °F	AA; Typical; average over range
	25.2 µm/m-°C @Temperature 20.0 - 200 °C	14.0 µin/in-°F @Temperature 68.0 - 392 °F
	26.1 µm/m-°C @Temperature 20.0 - 300 °C	14.5 µin/in-°F @Temperature 68.0 - 572 °F
Specific Heat Capacity	0.904 J/g-°C	0.216 BTU/lb-°F
Thermal Conductivity	117 W/m-K	810 BTU-in/hr-ft²-°F	AA; Typical at 77°F
Melting Point	568.3 - 638 °C	1055 - 1180 °F	AA; Typical range based on typical composition for wrought products >= 1/4 in. thickness
Solidus	568.3 °C	1055 °F	AA; Typical
Liquidus	638 °C	1180 °F	AA; Typical

Processing Properties	Metric	English	Comments
Annealing Temperature	413 °C	775 °F	holding at a temperature not required
Hot-Working Temperature	316 - 482 °C	600 - 900 °F

Component Elements Properties	Metric	English	Comments
Aluminum, Al	92.9 - 95.4 %	92.9 - 95.4 %	As remainder
Chromium, Cr	0.05 - 0.20 %	0.05 - 0.20 %
Copper, Cu	<= 0.10 %	<= 0.10 %
Iron, Fe	<= 0.40 %	<= 0.40 %
Magnesium, Mg	4.5 - 5.6 %	4.5 - 5.6 %
Manganese, Mn	0.05 - 0.20 %	0.05 - 0.20 %
Other, each	<= 0.05 %	<= 0.05 %
Other, total	<= 0.15 %	<= 0.15 %
Silicon, Si	<= 0.30 %	<= 0.30 %
Zinc, Zn	<= 0.10 %	<= 0.10 %

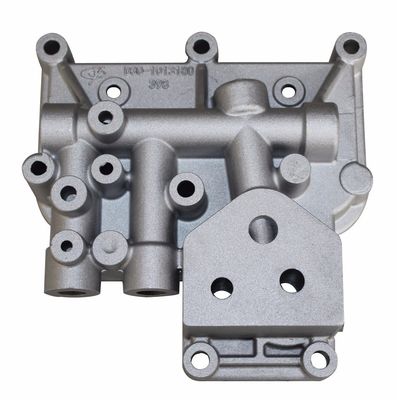

Product Show

5056 Forged Aluminum Parts For Flange Plate / Petrochemical Machinery / Ships 4

5056 Forged Aluminum Parts For Flange Plate / Petrochemical Machinery / Ships 5
