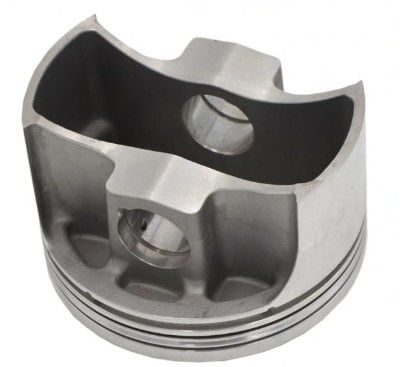

Arrow 2214 Forged Aluminum Parts OEM Machinery Spare Parts

Material

Aluminum Alloy 2214

Process

Forging+CNC+Heat Treatment

Surface Treatment

Transparent / Color Anodized;Hard Anodizing;Powder Coating;
Sandblasting, Laser Carving, Silk Screening;
Nickel-Plated, Chrome, Galvanized, Silver/Gold Plating;
Black Oxide Coating; Polishing; etc...

Manufacture Ability

Depends on The Complexity Of Different Products And Quantities

Experience

Aluminum Machining Service for 12 Years

Packaging

Standard Export Wooden Pallets
Another Request According to Your Need

MOQ

1pcs

Sample

Can be Customized

Mold

Can be Customized

Lead Time

Mold for 15-20Days

Process for 15-20Days

OEM

Can be Customized

Chemical Composition of 2214

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Zn+Ti

Others

Al

Each

Total

2024/2A12

0.5-1.2

0.3

3.9-5.0

0.4-1.2

0.2-0.8

0.1max.

0.25max

0.15max

0.2max

0.05max

0.15max

Rest

High-Temperature Tensile Properties of 2214 Aluminum Alloy at Different Temperatures

Temper

Temperature/℃

Tension strength R_m/MPa

Prescribed plastic elongation strength R_p0.2/MPa

Elongation A
(%)

T6

100

439

393

15

150

276

241

20

204

110

90

38

T6

260

66

52

52

315

45

34

65

370

30

24

72

Alloy

Alloy Series

Main features

Σb Value /MPa

Working temperatures /ºC

2214

Al-Cu-Mg-Si

The heat treatment can strengthen the aluminum alloy, the main varieties are rod and forgings. The iron impurity content in the alloy composition is lower than that of the 2014 alloy, and the toughness is improved. The strength of solid solution treatment plus artificial aging is higher, and the co - worker has medium plasticity. It is suitable for manufacturing high load parts with thick section. The alloy has high copper content and poor corrosion resistance. Other properties are equivalent to 2014 alloy.

420~460

<150

Technical indexes of 2214 aluminum alloy

Alloy

Type

Temper

δ or d/mm

σb/MPa

σp 0.2/MPa

δ/%

KIC or KC/MPa

Technical standard

2214

Extruded aluminum profile

T6

≤140

460

400

7

-

Z9-0405-1992

>140~160

460

290

6

-

>160~220

450

280

6

-

2214Welding Property

Alloy

Resistance welding

Melting welding

Argon arc welding

Note

2214

Good

Ok

-

In the process of welding, the tendency of heat cracking is larger. Therefore, the content of iron impurities in the matrix is limited and the qualified filler can be obtained by using special filler.

Alloy

Temper

Aircraft type

Application parts and typical parts

2214

Aluminum round bar: T6
Aluminum forgings:T6

ARJ21,Z9

Frame, frame frame
