TC4 Ti-6Al-4V Titanium Alloy Rods And Bars For Aerospace Automotive

Products

Air Disc Brake Core Components

TC4 Ti-6Al-4V Titanium Alloy Rods And Bars For Aerospace Automotive

MOQ:	1PCS
Price:	Negotiations
Standard Packaging:	wooden pallet
Delivery Period:	20~25days
Payment Method:	T/T, L/C
Supply Capacity:	2000 MT per month

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

JIMA Aluminum

Certification

IRIS,ISO9001，ISO 14001.

Model Number

8011,3003，5005,5052

Name:

TC4 (Ti-6Al-4V) Titanium Alloy Rods And Bars

Alloy:

TC4 (Ti-6Al-4V)

Execution Standards:

GB/T 2965 GJB 2218A GJB 1538A AMS 4928, ASTM B348, AMS-T-9047

Application:

Materials Used In Aerospace, Automotive And New Energy, Industrial Molds And Dies, And Semiconductor Fields

Highlight:

TC4 Titanium Alloy Rods

Aerospace Titanium Alloy Rods

Automotive Titanium Alloy Bars

Product Description

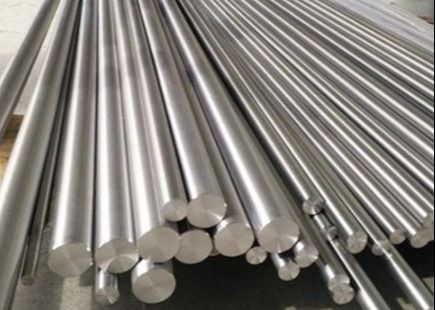

TC4 (Ti-6Al-4V) Titanium Alloy Rods and Bars

TC4 (Ti-6Al-4V) is one of the most widely used high-strength titanium alloys, combining excellent corrosion resistance, good mechanical strength and low density (approximately 4.5 kg/dm³).

This heat-treatable titanium alloy can be processed up to 25mm (solution heat treatment + aging) with maximum operating temperatures reaching 400°C. TC4 offers exceptional formability and specific strength, making it the preferred choice for aerospace and motorsports applications, accounting for approximately 50% of global titanium alloy procurement.

Application Areas

Aerospace, automotive and new energy sectors, industrial molds and dies, and semiconductor manufacturing.

Product Specifications

Unique Advantages	Main Applications	Execution Standards
Excellent corrosion resistance	Medical components	GB/T 2965
Excellent fatigue strength	Chemical components	GJB 2218A
Good machinability	Marine components	GJB 1538A
Good strength-to-weight ratio	Racing components	AMS 4928, ASTM B348, AMS-T-9047

Chemical Composition

Element	Ti	Al	V	Fe	C	N	H	O	Other Single	Other Total
Min	Balance	5.5	3.5	-	-	-	-	-	-	-
Max	Balance	6.75	4.5	0.3	0.08	0.05	0.015	0.2	0.1	0.4

Mechanical Properties

Room Temperature Properties

Property	Minimum Value
Tensile Strength (Rm) / MPa	895
Yield Strength (Rp0.2) / MPa	827
Elongation after Fracture (A) / %	10
Reduction of Area (Z) / %	25

High Temperature Properties

Property	Minimum Value
Tensile Strength (Rm) / MPa	600
Test Stress (σ) / MPa	560
Test Time (t) / h	100
Test Temperature / ℃	400

Product Showcase

Titanium Alloy Plate Mechanical Properties

TA2 Alloy

Condition	Thickness Range (mm)	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)	Bending Radius
M	0.3 - 1.0	440 - 620	≥320	≥35	≥100°, 3t
	> 1.0 - 2.0	440 - 620	≥320	≥30	≥100°, 3t
	> 2 - 5.0	440 - 620	≥320	≥25	≥90°, 3t
	> 5 - 10.0	440 - 620	≥320	≥25	-
	> 10.0 - 30	440 - 620	≥320	≥18	-

TC4 Alloy

Condition	Thickness Range (mm)	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)	Bending Radius
M	0.5 - 1.8	925 - 1150	≥870	≥12	≥105°, 9t
	> 1.8 - 4.0	925 - 1150	≥870	≥12	≥105°, 10t
	> 4.0 - 5.0	925 - 1150	≥870	≥10	≥105°, 10t
	> 5.0 - 10.0	925 - 1150	≥825	≥10	-
	> 10.0 - 100	925 - 1150	≥825	≥9	-

TC4 High Temperature Performance

Condition	Thickness Range (mm)	Tensile Strength (MPa)	Test Temperature (°C)	Test Stress (MPa)	Test Time (h)
M	0.5 - 30.0	≥590	400	540	≥100
M	0.5 - 30.0	≥540	500	195	-
