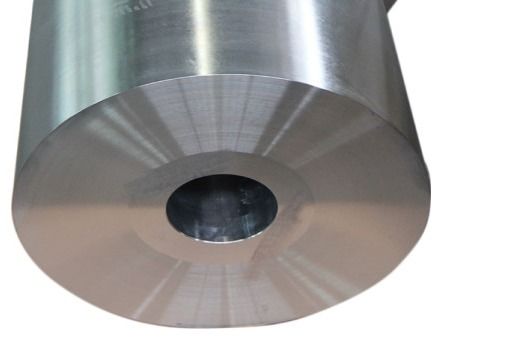

Name: High Strength Titanium Forged Components TA1 TA2 TC4 GR1 for Aerospace
Brand: JimaFor
SKU: 8011,3003，5005,5052
Availability: InStock

MOQ:	1PCS
Price:	Negotiations
Standard Packaging:	wooden pallet
Delivery Period:	20~25days
Payment Method:	T/T, L/C
Supply Capacity:	2000 MT per month

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

JIMA Aluminum

Certification

IRIS,ISO9001，ISO 14001.

Model Number

8011,3003，5005,5052

Name:

High Strength Aerospace Titanium Forged Components

Alloy:

TA1, TA2, TA3, TA9, TC4, GR1, GR2, GR5

Execution Standards:

GB/T 3621 AMS 4911 ASTM B265 AMS-T-9046

Application:

Metallurgy, Electronics, Medical, Chemical, Petroleum, Pharmaceutical, Aerospace

Highlight:

TA1 Titanium Forged Components

Aerospace Titanium Forged Components

TC4 Aerospace Forged Components

Product Description

TA1 TA2 TC4 GR1 High Strength Aerospace Titanium Forged Components



1,Titanium Forging Application

1. Aerospace

Aircraft structural components

Jet engine components: fan blades, housings, disks, compressor blades, disks, short shafts, housings

Spacecraft components: blades for fuel tanks, attitude control engine housings, liquid fuel turbopumps

2. Turbine blades for power generation

3. Medical field

Implants: joint replacements (hip and knee implants), spinal implants and fixation devices

Surgical instruments: for the manufacture of surgical tools, forceps and scalpels

4. Automotive

High-performance engine components: connecting rods, crankshafts

Suspension systems

5. High-end equipment manufacturing

High-speed rail and rail transportation

Large machine tools and precision machinery


2.Product Details

Attribute	Details
Alloy	TA1, TA2, TA3, TA9, TC4, GR1, GR2, GR5
Standard	GB/T 2965 - 2007, GB/T 13810 - 2007, ASTM B348, ASTM F67, ASTM F136, AMS4928, MIL4911
Dimensions	Diameter: 3.0 - 200mm<br>Length: 1000 - 6000mm<br>Tolerance: H7 - H11
Applications	Metallurgy, Electronics, Medical, Chemical, Petroleum, Pharmaceutical, Aerospace
Process	α+β forging,β machining forging,Multi-directional die forging,Partial die forging,Isothermal die forging
MOQ	1PCS
Size	Customized

3,Production Photos




4,Product Features

High strength

Corrosion resistance

High fatigue and impact resistance

Thermal Stability. Titanium has a melting point of 1,668°C (3,034°F)


5,Mechanical/Mechanical Properties of Titanium forging

Alloy	Condition	Thickness Range/mm	Tensile Strength (Rm)/MPa	Yield Strength (Rp0.2)/MPa	Elongation after Fracture /% ≥	Bending Radius
TA2	M	0.3 - 1.0	440 - 620	≥320	≥35	≥100°, 3t
		> 1.0 - 2.0	440 - 620	≥320	≥30	≥100°, 3t
		> 2 - 5.0	440 - 620	≥320	≥25	≥90°, 3t
		> 5 - 10.0	440 - 620	≥320	≥25	-
		> 10.0 - 30	440 - 620	≥320	≥18	-
TC4	M	0.5 - 1.8	925 - 1150	≥870	≥12	≥105°, 9t
		> 1.8 - 4.0	925 - 1150	≥870	≥12	≥105°, 10t
		> 4.0 - 5.0	925 - 1150	≥870	≥10	≥105°, 10t
		> 5.0 - 10.0	925 - 1150	≥825	≥10	-
		> 10.0 - 100	925 - 1150	≥825	≥9	-
