TC4 Ti-6Al-4V Titanium Forgings Sheet For Aerospace / Aircraft

Products

Air Disc Brake Core Components

TC4 Ti-6Al-4V Titanium Forgings Sheet For Aerospace / Aircraft

MOQ:	1PCS
Price:	Negotiations
Standard Packaging:	wooden pallet
Delivery Period:	20~25days
Payment Method:	T/T, L/C
Supply Capacity:	2000 MT per month

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

JIMA Aluminum

Certification

IRIS,ISO9001，ISO 14001.

Model Number

8011,3003，5005,5052

Name:

TC4 (Ti-6l-4V) Titanium Alloy Sheet

Alloy:

TC4 (Ti-6l-4V)

Execution Standards:

GB/T 3621 AMS 4911 ASTM B265 AMS-T-9046

Application:

Materials Used In Aerospace, Automotive And New Energy, Industrial Molds And Dies, And Semiconductor Fields

Highlight:

TC4 Titanium Forgings

Ti-6Al-4V Titanium Sheet

Aerospace Titanium Forgings

Product Description

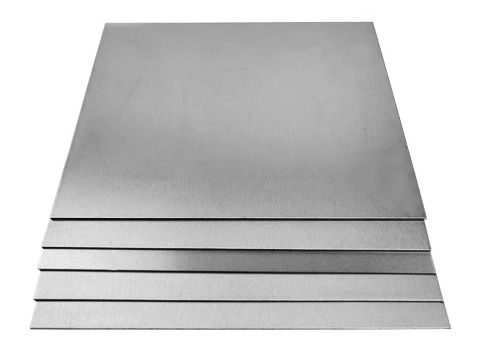

TC4 Ti-6Al-4V Titanium Forgings Sheet

High-strength titanium alloy sheets designed for aerospace, aircraft, and demanding industrial applications.

Product Overview

TC4 (Ti-6Al-4V) is one of the most widely used high-strength titanium alloys, combining excellent corrosion resistance, favorable mechanical strength, and low density (approximately 4.5 kg/dm³).

This heat-treatable titanium alloy can be processed up to 25mm (solution heat treatment + aging) with a maximum operating temperature of 400°C. TC4 offers good formability and outstanding specific strength, making it ideal for aerospace and motorsports applications. Approximately 50% of global titanium alloy procurement volume consists of TC4 (Ti-6Al-4V).

Application Areas

Aerospace components
Automotive and new energy applications
Industrial molds and dies
Semiconductor manufacturing

Product Specifications

Unique Advantages	Main Applications	Execution Standards
Excellent corrosion resistance	Medical components	GB/T 3621
Excellent fatigue strength	Chemical components	AMS 4911
Good machinability	Marine components	ASTM B265
Good strength-to-weight ratio	Racing components	AMS-T-904

Chemical Composition

Element	Ti	Al	V	Fe	C	N	H	O	Other Single	Other Total
Min	Balance	5.5	3.5	-	-	-	-	-	-	-
Max	Balance	6.75	4.5	0.3	0.08	0.05	0.015	0.2	0.1	0.4

Mechanical Properties

Room Temperature Properties			High Temperature Properties
Property	Minimum	Property	Minimum	Minimum
Tensile Strength (Rm)/MPa	895	Tensile Strength (Rm)/MPa	590	440
Yield Strength (Rp0.2)/MPa	825	Test Stress (σ)/MPa	540	195
Elongation after Fracture (A)/%	9	Test Time (t)/h	100	100
Reduction of Area (Z)/%	-	Test Temperature/℃	400	500

Product Showcase

Titanium Alloy Plate Mechanical Properties

Alloy	Condition	Thickness Range/mm	Tensile Strength (Rm)/MPa	Yield Strength (Rp0.2)/MPa	Elongation after Fracture /% ≥	Bending Radius
TA2	M	0.3 - 1.0	440 - 620	≥320	≥35	≥100°, 3t
		> 1.0 - 2.0	440 - 620	≥320	≥30	≥100°, 3t
		> 2 - 5.0	440 - 620	≥320	≥25	≥90°, 3t
		> 5 - 10.0	440 - 620	≥320	≥25	-
		> 10.0 - 30	440 - 620	≥320	≥18	-
TC4	M	0.5 - 1.8	925 - 1150	≥870	≥12	≥105°, 9t
		> 1.8 - 4.0	925 - 1150	≥870	≥12	≥105°, 10t
		> 4.0 - 5.0	925 - 1150	≥870	≥10	≥105°, 10t
		> 5.0 - 10.0	925 - 1150	≥825	≥10	-
		> 10.0 - 100	925 - 1150	≥825	≥9	-

Alloy	Condition	Thickness Range/mm	Tensile Strength (Rm)/MPa	Test Temperature/℃	Test Stress(σ)/MPa	Test Time(t)/h
TC4	M	0.5 - 30.0mm	≥590	400	540	≥100
			≥540	500	195
