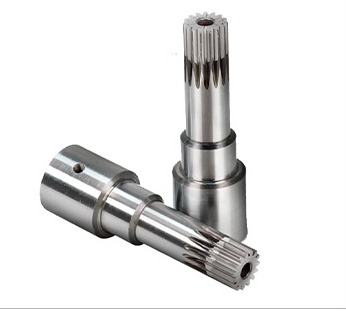

Blind Hole Internal Spline Machining Solution Blind Hole Internal Spline Motor Shaft
| MOQ: | 1PCS |
| Price: | Negotiations |
| Standard Packaging: | wooden pallet |
| Delivery Period: | 7~30days |
| Payment Method: | T/T, L/C |
| Supply Capacity: | 7000PCS /per month |
Detail Information
Place of Origin
CHINA
Brand Name
JIMA
Certification
DIN ISO 14 SAE AS972B. JB/T 10420-2004 GB/T 10919-2021 JB/T 9992-2011
Model Number
JIMAFOR
Name:
Blind Hole Internal Spline Machining Solution,Blind Hole Internal Spline Motor Shaft
Type:
Using Japan Tsugami (TSUGAMI) Swiss-type CNC Lathe
Technics:
High-precision Composite Processing Equipment
Material:
Q235 45 40Cr 20CrMnTi 42CrMo Cr12MoV 9SiCr. 304 Stainless Steel（0Cr18Ni9） 316 Stainless Steel（0Cr17Ni12Mo2）420Stainless Steel（1Cr13） TC4
Highlight:
Internal Spline Motor Shaft
,Blind Hole Internal Spline Shaft
,Internal Spline Shaft Machining
Product Description
Blind Hole Internal Spline Machining Solution
We provide comprehensive solutions for precision machining of internal and external splines in a single clamping operation. As one of the few global specialists in blind internal spline machining, we deliver exceptional quality and precision for demanding industrial applications.
Technological Advantages
Tsunami centring machines offer significant technological advantages in blind hole spline machining. Their multi-axis synergy, high-rigidity structure, and complex machining capabilities enable efficient high-precision blind hole internal spline processing.
Utilizing Japan Tsugami Swiss-type CNC Lathes, our high-precision composite processing equipment completes multiple processes in a single clamping. This provides significant technical advantages, particularly for efficient batch production of precision shaft parts and complex special-shaped components.
Our Product Portfolio
Standard Spline Kits
- Precision internal spline kits
- High-strength external spline shaft components
- Internal spline shafts
- External spline shafts
Special Spline Products
- Deep blind hole spline components (industry-leading 1:20 machining depth ratio)
- Mining machinery specialized spline transmission systems
- Mining gear shaft assemblies
- Heavy-duty mine car spline drive shafts
- High-load spline shafts for underground equipment
- New energy motor shafts
- Blind hole internal spline motor shafts
- Traction motor shafts
Customized Processing Services
- Non-standard spline design and manufacturing
- Special material spline machining
- Complete transmission system solutions
Payment Methods: T/T, PayPal, Ali-Pay, West Union, Cash. Standard terms: 30% deposit with 70% balance payment. Volume discounts available.
