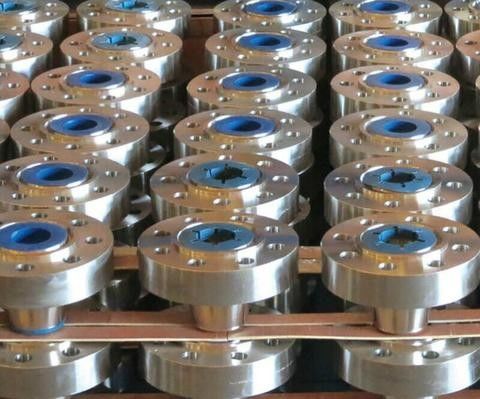

API 16A F22 Steel Forged Rings for Shale Gas Wellhead Flange

Products

Air Disc Brake Core Components

API 16A F22 Steel Forged Rings for Shale Gas Wellhead Flange

MOQ:	1PCS
Price:	Negotiations
Standard Packaging:	Standard Export Package
Delivery Period:	10~25days
Payment Method:	T/T, L/C
Supply Capacity:	2000MT per month

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

JIMAFor

Certification

API 16A Standard

Name:

API 16A F22 Steel Shale Gas Wellhead Flange Ring,Wellhead Flange Ring

Material:

API 16A F22 Alloy Steel

Application:

Shale Gas Wellhead Equipment ,High-Temperature & High-Pressure Oil/Gas Wells

Size:

Customized

Processing:

Forging+ Heat Treatment

Highlight:

API 16A Forged Rings

F22 Steel Forged Rings

Wellhead Flange Forged Rings

Product Description

API 16A F22 Steel Forged Rings for Shale Gas Wellhead Flange

Our API 16A F22 steel shale gas wellhead flange rings are precision-engineered components designed for demanding oil and gas applications. These forged rings provide reliable performance in high-pressure, high-temperature shale gas extraction environments.

Available Products

Custom sizes manufactured according to customer drawings
Wellhead Flange and Wellhead Flange Rings
API Certified Wellhead Flange
High-Pressure Wellhead Flange
High-Temperature Resistance Flange
Corrosion Resistance Wellhead Flange

Material Properties

Chemical Composition

F22 alloy steel primarily consists of iron, carbon, chromium (2.00%-2.50%), molybdenum (0.87%-1.13%), and other alloying elements that provide exceptional overall performance characteristics.

Mechanical Properties

Property	Value
Tensile Strength	Minimum 95 KSI (655 MPa)
Yield Strength	Minimum 75 KSI (517 MPa)
Elongation	18%
Reduction of Area	35%
Hardness	197-237 BHN (Maximum 22 HRC per NACE MR0175)

Performance Advantages

High-Temperature Resistance: Stable operation in 500-650°C environments, maintaining mechanical properties and sealing integrity
Superior Creep Resistance: Minimal deformation under prolonged high-temperature, high-stress conditions
Strong Oxidation Resistance: Forms protective oxide layer at high temperatures
Excellent Weldability: Favorable welding characteristics with proper preheating, temperature control, and post-weld heat treatment
High Corrosion Resistance: Complies with NACE MR0175 standards for resistance to acidic gases, hydrogen sulfide, and other corrosive media

Applications

Shale Gas Wellhead Equipment: Critical connecting components for casing, tubing, and valves in shale gas systems
High-Temperature & High-Pressure Oil/Gas Wells: Reliable flange connections for complex downhole conditions

Manufacturing & Processing

Forging Process: High-temperature heating and forging to refine internal structure and eliminate defects
Heat Treatment: Normalizing, quenching, and tempering to achieve optimal strength and hardness properties

Standards Compliance

Our F22 alloy steel flange rings fully comply with API 16A standards for wellhead and Christmas tree equipment, ensuring quality and performance meet industry requirements for shale gas applications.
