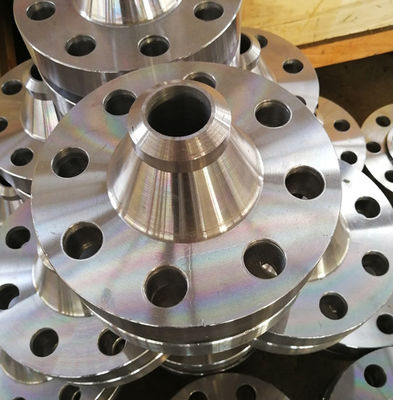

Petroleum ASTM A105 Carbon Steel Flange Rings With Non Standard Bolt Holes
  • name
  • name
  • name

Petroleum ASTM A105 Carbon Steel Flange Rings With Non Standard Bolt Holes

MOQ: 1PCS
Standard Packaging: Standard Export Package
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
JIMAFor
Certification
ISO9001-2008,SGS,ROHS.
Product Name:
Custom-Shaped Petroleum Flange Rings (Non-Standard Bolt Holes) ASTM A105 Carbon Steel High Pressure Corrosion Resistant
Manufacturing Process:
Forging Heat Treatment Normalizing CNC Machining
Applications:
Petrochemical: Acid-resistant Flange Joints, Compressor Systems. Energy: Hydraulic Power Units, Geothermal Piping.
Sample:
Can Be Customized
Highlight:

Petroleum ASTM A105 Flange Rings

,

Non Standard Carbon Steel Flange Rings

,

ASTM A105 Carbon Steel Flange Rings

Product Description
Custom Petroleum ASTM A105 Carbon Steel Flange Rings
Engineered for demanding oil and gas applications requiring high-pressure resistance and corrosion durability, these custom-shaped flange rings feature non-standard bolt hole configurations. Manufactured from ASTM A105 carbon steel and precision-machined for complex geometries, they ensure reliable performance in pipelines, wellheads, and refinery systems.
Features & Specifications
Superior Material Properties
  • Material: ASTM A105 Carbon Steel (Forged & Normalized)
  • Standards Compliance: ASME B16.5, API 6A, NACE MR0175
  • Tensile Strength: ≥485 MPa | Yield Strength: ≥250 MPa
  • Hardness: ≤187 HB (Annealed for Machinability)
  • Corrosion Resistance: Ideal for CO₂/H₂S environments with optional coatings
Precision Manufacturing
  • Custom Geometry: Laser-scanned profiles for non-circular or asymmetrical shapes
  • Non-Standard Bolt Holes: CNC-drilled with positional accuracy ±0.2mm
  • Pressure Rating: Class 150 to Class 2500
  • Surface Finish: Machined to Ra ≤3.2μm or coated for enhanced corrosion protection
Size Range 2" to 48" nominal diameter (Customizable dimensions)
Temperature Range -29°C to 425°C (Compatible with cryogenic to high-heat operations)
Dimensional Tolerance Outer Diameter: ±1.5mm | Bolt Hole Circle (BHC): ±0.5mm
Key Advantages
Bespoke Design Flexibility
Adapt to non-standard bolt patterns and irregular shapes without costly molds, ideal for retrofit or legacy systems. 3D modeling support (STEP/IGES files) for seamless integration.
High-Pressure Integrity
ASTM A105's forged structure ensures uniform grain flow, critical for high burst strength in oilfield operations.
Rapid Turnaround
Prototype to bulk production in 15-30 days (Small batches accepted).
Compliance & Safety
NACE MR0175 certification available for sour gas (H₂S) environments. 100% PT (Penetrant Testing) or UT (Ultrasonic Testing) to detect subsurface defects.
Applications
  • Oil & Gas: Pipeline connectors, wellhead flanges, subsea equipment
  • Refineries: High-temperature reactor flanges, valve manifolds
  • Petrochemical: Acid-resistant flange joints, compressor systems
  • Energy: Hydraulic power units, geothermal piping
Manufacturing Process
  1. Forging & Shaping: Hot forging ASTM A105 billets into near-net shapes
  2. Heat Treatment: Normalizing (900-950°C) to refine microstructure
  3. CNC Machining: 5-axis CNC milling for custom profiles and bolt holes
  4. Surface Finishing: Shot blasting + anti-corrosion coatings (optional)
  5. Quality Control: Dye penetrant (PT) / ultrasonic (UT) testing + 3D CMM
Tags:

Forged Rings,

Metal Flange Ring,

Forged Metal Rings
