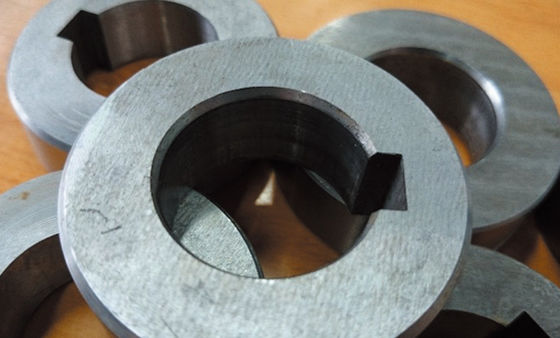

GCr15 Carbon Steel Bearing Rings 20-50mm Thickness Precision Batch Cutting
  • name

GCr15 Carbon Steel Bearing Rings 20-50mm Thickness Precision Batch Cutting

MOQ: 1PCS
Standard Packaging: Standard Export Package
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
JIMAFor
Certification
ISO9001-2008,SGS,ROHS.
Product Name:
High Volume Carbon Steel Bearing Rings GCr15 Bearing Steel 20-50mm Thickness Precision Batch Cutting
Sample:
Can Be Customized
Applications:
Wind Energy: Main Shaft Bearings, Pitch/yaw Systems. Heavy Machinery: Mining Conveyor Rollers, Crane Slewing Rings
Material:
GCr15 (1.3505/52100) Bearing Steel
Highlight:

50mm Carbon Steel Bearing Rings

,

Carbon Steel Bearing Rings Batch Cutting

,

GCr15 Carbon Steel Bearing Rings

Product Description
GCr15 Carbon Steel Bearing Rings 20-50mm Thickness Precision Batch Cutting
High-volume carbon steel bearing rings manufactured from GCr15 bearing steel with precision batch cutting capabilities for industrial applications.
Features & Specifications
Premium Material Properties
  • Material: GCr15 (1.3505/52100) Bearing Steel
  • Chemical Composition: C 0.95-1.05%, Cr 1.30-1.60%, Mn 0.25-0.45%
  • Hardness: HRC 60-64
  • Mechanical Performance:
    • Tensile Strength: ≥2,200 MPa
    • Fatigue Limit: ≥1,000 MPa (ISO 281 Standard)
    • Impact Toughness: 15-25 J/cm²
Precision Batch Manufacturing
  • Bulk Cutting Technology: Multi-head abrasive waterjet
  • Dimensional Accuracy:
    • Inner/Outer Diameter Tolerance: ±0.05mm
    • Thickness Tolerance: ±0.1mm (20-50mm range)
  • Surface Integrity: Post-cut grinding/polishing to Ra ≤0.4μm
Technical Specifications
  • Size Range:
    • Inner Diameter: 30mm to 300mm
    • Thickness: 20mm, 25mm, 30mm, 40mm, 50mm (Customizable)
  • Batch Capacity: 10,000+ units/month with 15-day lead time
  • Standards Compliance: ISO 683-17, ASTM A295, DIN 17230
Advantages
  • High-Volume Cost Efficiency: AI-driven nesting software reduces material waste by 25% in bulk cutting
  • Wear Resistance & Longevity: GCr15's chromium-carbide network ensures superior anti-pitting and rolling contact fatigue resistance
  • Thermal Stability: Through-hardening (Quenched in oil at 830-850°C) guarantees uniform hardness (HRC 60-64) across 20-50mm thickness
Manufacturing Process
Process Stage Technical Content
Blank Preparation GCr15 steel plates laser-sliced to near-net thickness
Batch Cutting Multi-head waterjet/laser cuts 50+ rings per cycle
Heat Treatment Vacuum quenching + cryogenic tempering (-70℃)
Precision Grinding CNC centerless grinding for ID/OD finishing (±0.05mm)
Quality Assurance 100% hardness mapping (Rockwell C) + ultrasonic flaw detection
Applications
  • Automotive: Transmission bearings, wheel hub units
  • Wind Energy: Main shaft bearings, pitch/yaw systems
  • Heavy Machinery: Mining conveyor rollers, crane slewing rings
  • Railway: Axlebox bearings, traction motor assemblies
Certifications & Compliance
IATF 16949 (Automotive), ISO 14001 (Environmental), EN 10204-3.1 Material Certificates.
RoHS/REACH compliant (Hexavalent chromium-free passivation).
CNC centerless grinding for ID/OD finishing (±0.05mm).
